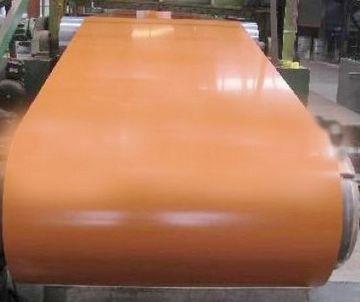

Shandong color steel plate manufacturer directly sells hot-dip galvanized color coated coils/aluminized zinc color coated coils

厂家直销热镀锌/镀铝锌彩涂卷(PPGI/PPGL) 1. Executive standards: National standard GBT 12754-06/American standard ASTM A653M-04/Japanese standard JIS G3312/DIN
2. Material grade: hot-dip galvanized substrate SGCC (DX51D-Z), hot-dip aluminum zinc substrate SGLC (DX51D-AZ)
3. Plating thickness: Ordinary Z35 or AZ40
Coating range: zinc Z40-Z275, aluminum zinc AZ40-AZ150
4. Thickness: 0.23-0.80mm
(Conventional thickness -0.32/0.35/0.37/0.40/0.42/0.45/0.47/0.5/0.6mm)
5. Width: 900-1250mm (regular width: 1000/1200mm)
6. Inner diameter: 508mm, 610mm
7. Color: According to RAL color card or customer specifications (regular navy blue, gray white, crimson)
8. Paint material: polyester paint
9. Front coating thickness: The front paint thickness is 16um, and the bottom paint thickness is 5um (the price for thickening the paint film will be discussed separately, with a maximum of 25/8um)
10. Roll weight: 3-8MT
11. Packaging: Vertical or horizontal packaging, with waterproof kraft paper inside and reinforced with steel plates and strips.
